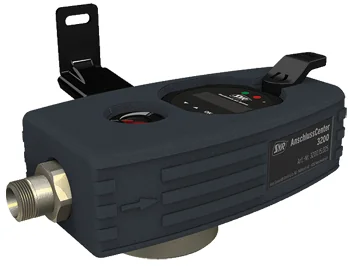

HVA 3200 Connect (Heizungsvollautomat / Fully Automatic Heating Filling Unit 3200)
Heating fill systems✓Official SYR Oceanic product
☎Technical advice & support
Description
The SYR HVA 3200 Connect is a fully automatic filling unit for closed heating systems, supplying them with softened (HWE) or fully desalinated (HVE) water depending on the cartridge selected. The refillable cartridges are available in 4, 7, 14 and 30 litre sizes. The unit continuously monitors and tops up system pressure automatically, and can be connected to the SYR Connect platform for remote control and monitoring via smartphone or tablet.
Technical specifications
| Min. operating pressure voorfilter | 16 bar |
|---|---|
| Min. operating pressure vulcombi | 10 bar |
| Min. operating pressure aansluitcenter | 6 bar |
| Max. operating temp. voorfilter | 30 °C |
| Max. operating temp. vulcombi | 30 °C (In) / 65 °C (Out) |
| Max. operating temp. aansluitcenter | 30 °C |
| Uitgaande pressure | 1,5 - 5 bar |
| Medium | drinking water |
| Vulpower | 0,5 m³/h at Δp 0,2 bar |
| Spanning netadapter | 9V DC |
| Batterijen | 4 x LR06 |
| Max. belasting van het extern potentiaalvrij contact | IN: min. 12V / 20 mA OUT: max. 24V / 2A |
| Dimension l | 240 mm |
| Dimension m | 400 mm |
| Dimension h | 298 mm |
| Dimension t | 228 mm |
| Dimension t | 143 mm |
Order numbers
| Variant / size | Order number |
|---|---|
| Main product | |
| Complete heating automat 3200 | 3200.20.030 |
| Accessories | |
| Cartridge HWE 4 liter | CVPAT.HAR.004 |
| Cartridge HWE 7 liter | CVPAT.HAR.007 |
| Cartridge HWE 14 liter | CVPAT.HAR.014 |
| Cartridge HWE 30 liter | CVPAT.HAR.030 |
| Cartridge HVE 4 liter | CVPAT.MIX.004 |
| Cartridge HVE 7 liter | CVPAT.MIX.007 |
| Cartridge HVE 14 liter | CVPAT.MIX.014 |
| Cartridge HVE 30 liter | CVPAT.MIX.030 |
| Replacement resin HWE 4 liter | CVNAV.HAR.004 |
| Replacement resin HWE 7 liter | CVNAV.HAR.007 |
| Replacement resin HWE 30 liter | CVNAV.HAR.030 |
| Replacement resin HVE 4 liter | CVNAV.MIX.004 |
| Replacement resin HVE 7 liter | CVNAV.MIX.007 |
| Replacement resin HVE 30 liter | CVNAV.MIX.030 |
