Ratio 5315 DFR/FR

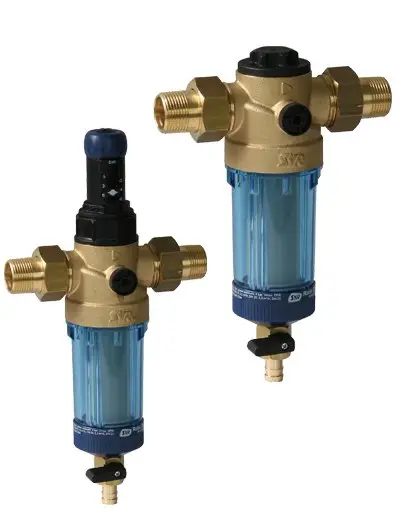

Ratio DFR/FR 5315
Filter technology✓Official SYR Oceanic product
⤓Documentation & manuals available
☎Technical advice & support
Description
Ratio DFR: Compact manual backwash filter with pressure reducer and pressure gauge connection. With couplings. Outlet pressure adjustable between 1.5 and 6 bar. Factory setting 4 bar. Ratio FR: Compact manual backwash filter with pressure gauge connection. With couplings.
Technical specifications
| Min. operating pressure | 2 bar |
|---|---|
| Max. operating pressure | 16 bar |
| Max. operating temp. | 30 °C |
| Medium | drinking water |
| Flow rate DFR | 1,3 m³/h at Δp 1,1 bar |
| DN 20 | 2,3 m³/h at Δp 1,1 bar |
| DN 25 | 2,3 m³/h at Δp 1,1 bar |
| Flow rate FR | 2,0 m³/h at Δp 0,2 bar |
| DN 20 | 2,3 m³/h at Δp 0,2 bar |
| DN 25 | 3,0 m³/h at Δp 0,2 bar |
| DN 15 | 3,4 m³/h at Δp 0,5 bar |
| DN 20 | 4,4 m³/h at Δp 0,5 bar |
| DN 25 | 5,2 m³/h at Δp 0,5 bar |
| Installation direction | any |
| Passage opening | 90 - 125 µm |
Order numbers
| Variant / size | Order number |
|---|---|
| Ratio DFR DN 15 | 5315.15.004 |
| Ratio DFR DN 20 | 5315.20.004 |
| Ratio DFR DN 25 | 5315.25.004 |
| Ratio FR DN 15 | 5315.15.005 |
| Ratio FR DN 20 | 5315.20.005 |
| Ratio FR DN 25 | 5315.25.005 |
