DRUFI+ max DFR/FR 2315

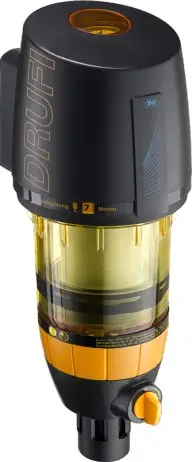

DRUFI+ max DFR 2315 and FR max 2315 Backwash filter
Filter technology✓Official SYR Oceanic product
⤓Documentation & manuals available
☎Technical advice & support
Description
DRUFI+ max DFR: Semi-automatic backwash filter with pressure reducer, inlet pressure gauge (0-25 bar) and outlet pressure gauge (0-10 bar), outlet pressure adjustable from 1.5 to 6 bar. Includes moulded seal, screws and Allen key for installation. DRUFI+ max FR: Semi-automatic backwash filter with pressure gauge. Can be extended with a pressure reducer (order no. 2315.01.934). Includes moulded seal, screws and Allen key for installation. Don't forget to order the SYR MAX connection flange DN 32 to DN 50.
Technical specifications
| Min. operating pressure | 2 bar |
|---|---|
| Max. operating pressure | 16 bar |
| Max. operating temp. | 30 °C |
| Medium | drinking water |
| Flow rate DFR – DN 32 | 5,8 m³/h at Δp 1,1 bar |
| DN 40 | 9,1 m³/h at Δp 1,1 bar |
| DN 50 | 14,0 m³/h at Δp 1,1 bar |
| Flow rate FR – DN 32 | 8,4 m³/h at Δp 0,2 bar |
| DN 40 | 9,0 m³/h at Δp 0,2 bar |
| DN 50 | 9,2 m³/h at Δp 0,2 bar |
| DN 32 | 13,0 m³/h at Δp 0,5 bar |
| DN 40 | 14,5 m³/h at Δp 0,5 bar |
| DN 50 | 15,0 m³/h at Δp 0,5 bar |
| Installation direction | Any |
| Mesh size | 90 - 125 µm |
| Art. no. DFR | P-IX 7565/I |
| FR | P-IX 7564/I |
Order numbers
| Variant / size | Order number |
|---|---|
| Main product | |
| DRUFI+ max DFR | 2315.01.202 |
| DRUFI+ max FR | 2315.01.203 |
| Accessories | |
| DRUFI max universal flange – DN 32 (coupling) | 2315.32.201 |
| DRUFI max universal flange – DN 40 (coupling) | 2315.40.201 |
| DRUFI max universal flange – DN 50 (coupling) | 2315.50.201 |
| Backwash automation – RSA 2316 | 2316.00.200 |
| Backwash automation – power adapter | 2316.00.905 |
